MM32 Application Case


RC Servo	Power Tool	PC/Gaming Accessory	BLE Remote Control	Auto Electronics	Display Solution	E-Vehicles	Wireless Charger


DC Fan	Intelligent Lock	Vacuum Cleaner	Printer	Smart Tag	LED Display	E-Cigarette	Smart Meter

Examples of application cases

Board	Product	Part.NO	Program Feature	Specifications	System Block Diagram	Contact Us

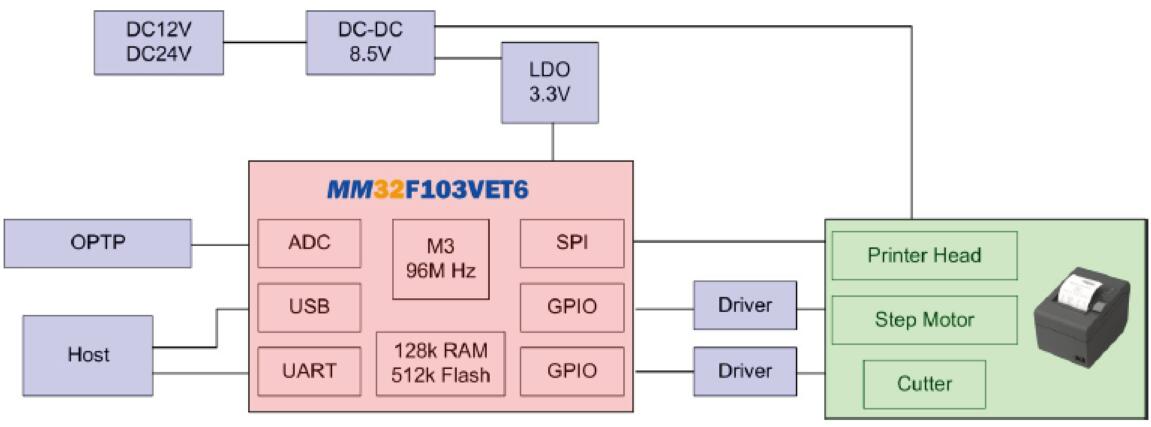

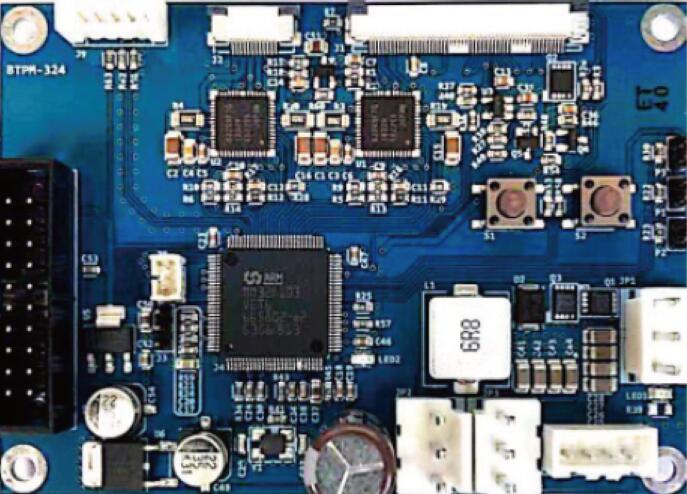

	Printer	MM32F103VET6	● One-dimensional and two-dimensional code printers ● Bill printing ● Wired and wireless printing	● ARM Corte-M3 runs up to 168MHZ ● Support SEKIO movement 12V: CAPD-245 / CAPD-345 / LTP01-245 24V: CAPD-247 / CAPD-347		Contact us for more details

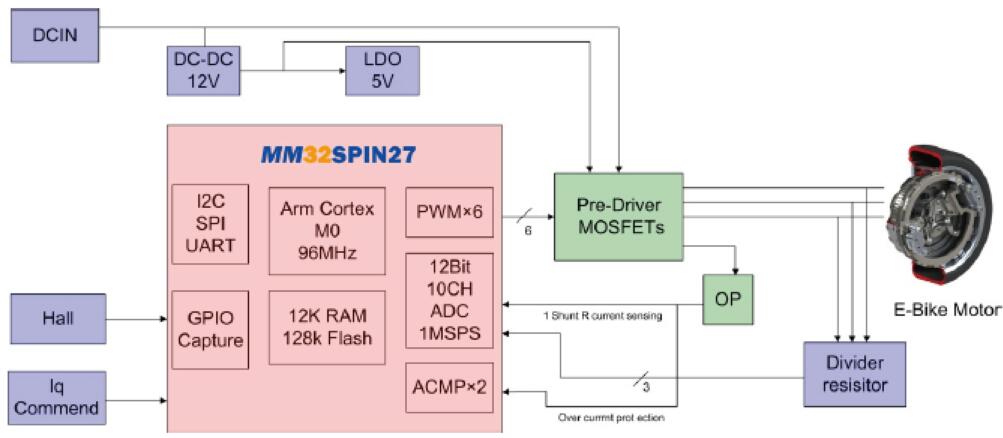

	E-Vehicles	MM32SPIN27	● Three-mode FOC high efficiency ● Support Hall start and motion control ● Cruise at fixed speed ● Protection function: over-current, under-voltage, stall protection ● Voltage: 48V	● ARM Cortex-M0 runs up to 96MHZ ● Support three-mode drive ● Single resistance three-phase current sampling ● Speed limit, current limit, anti-theft function		Contact us for more details

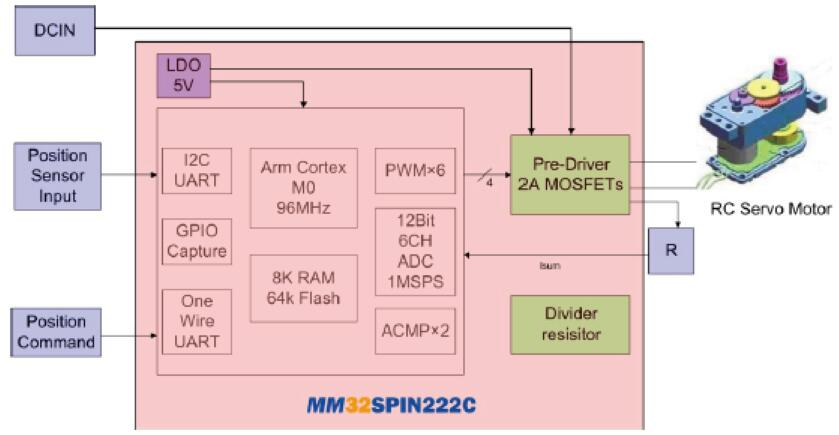

	RC Servo	MM32SPIN222C	● High efficiency and high integration ● Integration ● Position and speed control ● Protection function: overcurrent protection ● Voltage range: 5 ~ 15V	● ARM Cortex-M0 can run up to 96MHZ ● Built-in Gate driver and 20V / 2VMOS tube X6 ● Built-in single-wire half-duplex UART communication function		Contact us for more details

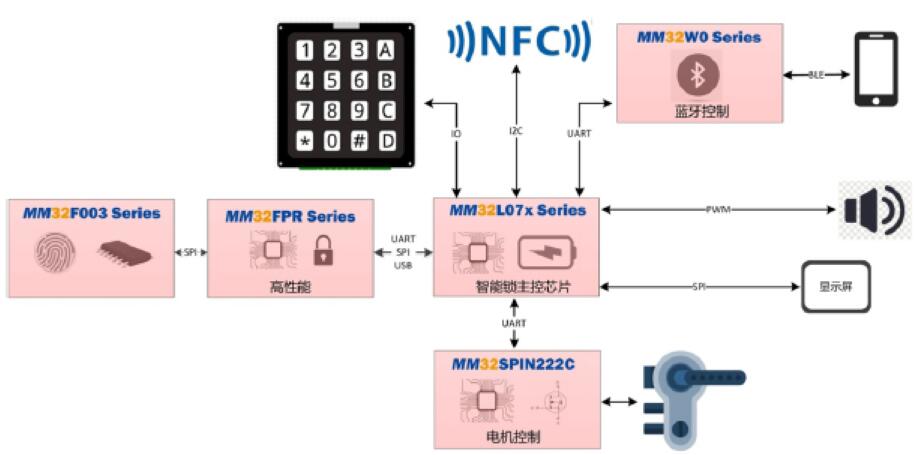

	Intelligent Lock	MM32FPRNT MM32F003NW MM32L07X	● Fingerprint, Bluetooth, keys, NFC unlock ● High fingerprint recognition rate, short fingerprint comparison time, Fast response speed and low standby power consumption ● Rich data communication methods: UART / SPI /IIC / USB ● Passed Tesla test ● Working temperature: -40 ° C ~ 105 ° C	● ARM Corte-M3 can run up to 168Mhz ● Built-in 512K Flash and 128K SRAM, support multiple Fingerprint storage ● Standby power consumption 0.4uA, standby wake-up time 230us ● Support multiple data collection methods		Contact us for more details
