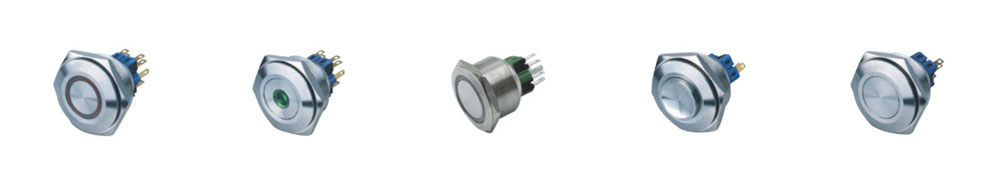

• RN30-A1
• RN30-A2
• RN30-A3
• RN30-B3
• RN30-B1
|
 |
| Part Number | Mounting Hold Size | Switch Rating | Switch Combination | Operation Types | Head Shape | Enclosure Material | Degree of protection | Lamp Type | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|
| RD30-A1 | φ30mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Ring Illuminated | 暫無 |
| RD30-A2 | φ30mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Dot Illuminated | 暫無 |
| RD30-A3 | φ30mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Ring Illuminated | 暫無 |
| RD30-B3 | φ30mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | High Concave Head | Nickel plated brass/Stainless stell | IP67,IK10 | / | 暫無 |
| RD30-B1 | φ30mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | High Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | 暫無 |
