Illuminated Push Button Switches RPS

• Rating：30VDC 0.1A

• Contact Resistance：50mΩ Max

• Insulation Resistance：100MΩ Min(250VDC)

• Dielectric Strength：250VAC（50/60Hz for 1 min）

• Operating Force：160±80g

• Electrically Life：100,000 cycles

• Operating Temperation Range：-20℃~+70℃

• Operating Mode：A：Self-Lock B：Non-Lock

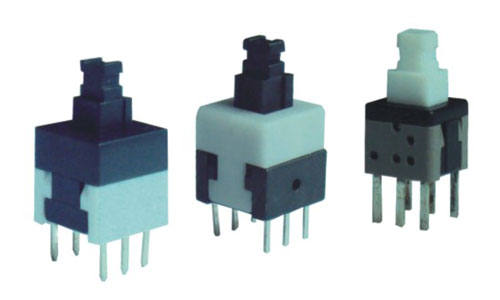

Illuminated Push Button Switches RPS Figure

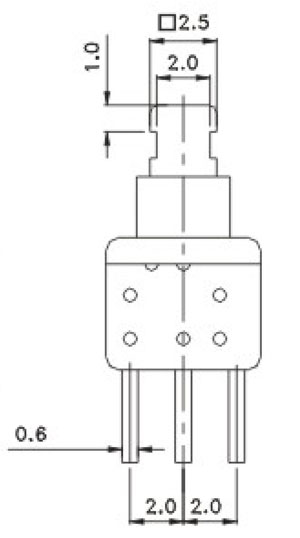

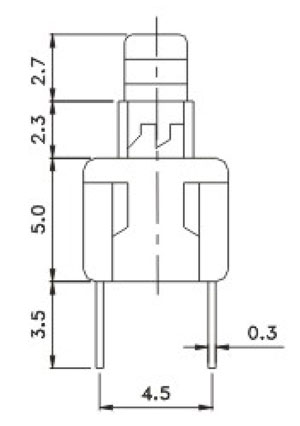

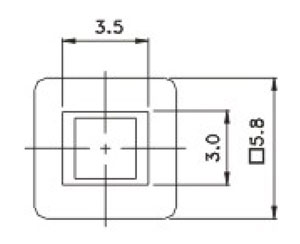

Illuminated Push Button Switches RPS Structure Diagram

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Electrically Life	Operating Temp.	Operating Mode	Download
RPS58A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS58B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS581A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS581B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS582A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS582B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS60A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS60B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS70A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS70B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS70A-1(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS70B-1	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS80A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS80B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS851A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS851B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS852A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS852B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS8513A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS8513B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
