• Electrical Life: 2,000 operations min.
• Contact Resistance: 50mΩ max.
• Insulation Resistance: 100MΩ min
• Operation Temp:-20"C~ 85"C
• Operation Force:1000gf max.
• Stroke: 1.0 mm
• Contact Rating:25mA@24VDC(switching);
100mA@50VDC(non-switching)
|
|
Part Number | Electrical Life | Contact Resistance | Insulation Resistance | Operation Temp | Operation Force | Stroke | Contact Rating | PDF下載 |
---|---|---|---|---|---|---|---|---|

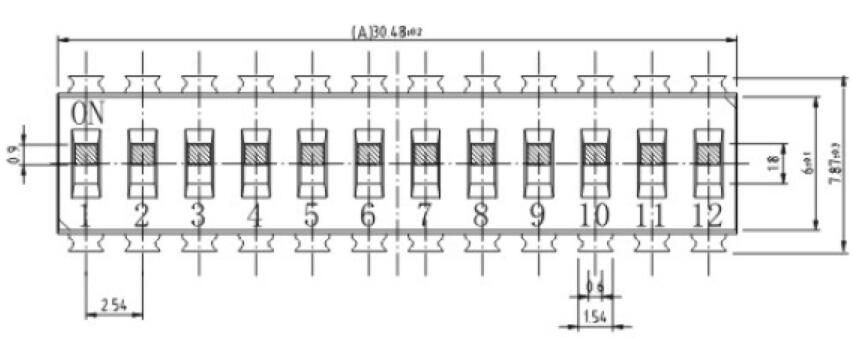

RDM | 2,000 operations min. | 50mΩmax. | 100MΩmin | -20℃~ 85℃ | 1000gf max. | 1.0 mm | 25mA@24VDC(switching);100mA@50VDC(non-switching) | 暫無 |

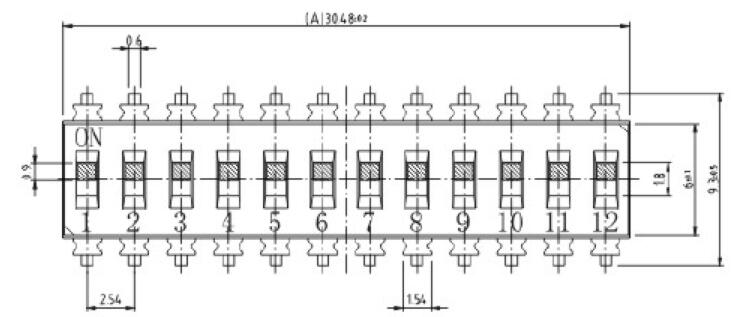

RDH | 2,000 operations min. | 50mΩmax. | 100MΩmin | -20℃~ 85℃ | 1000gf max. | 1.0 mm | 25mA@24VDC(switching);100mA@50VDC(non-switching) | 暫無 |
